Database Open Access
Published: Nov. 16, 1999. Version: 1.0.0
Please include the standard citation for PhysioNet:
(show more options)
Goldberger, A., Amaral, L., Glass, L., Hausdorff, J., Ivanov, P. C., Mark, R., ... & Stanley, H. E. (2000). PhysioBank, PhysioToolkit, and PhysioNet: Components of a new research resource for complex physiologic signals. Circulation [Online]. 101 (23), pp. e215–e220.
Over 100 fifteen-minute two-lead ECG recordings (many excerpted from other databases), with onset, peak, and end markers for P, QRS, T, and (where present) U waves of from 30 to 50 selected beats in each recording.
Each of the 105 records consists of a (text) header file, a (binary) signal file, and up to 9 (binary) annotation files, identified by suffix:
|.hea||header file, describing signal file contents and format|
|.atr||reference beat annotations from original database (not available in all cases)|

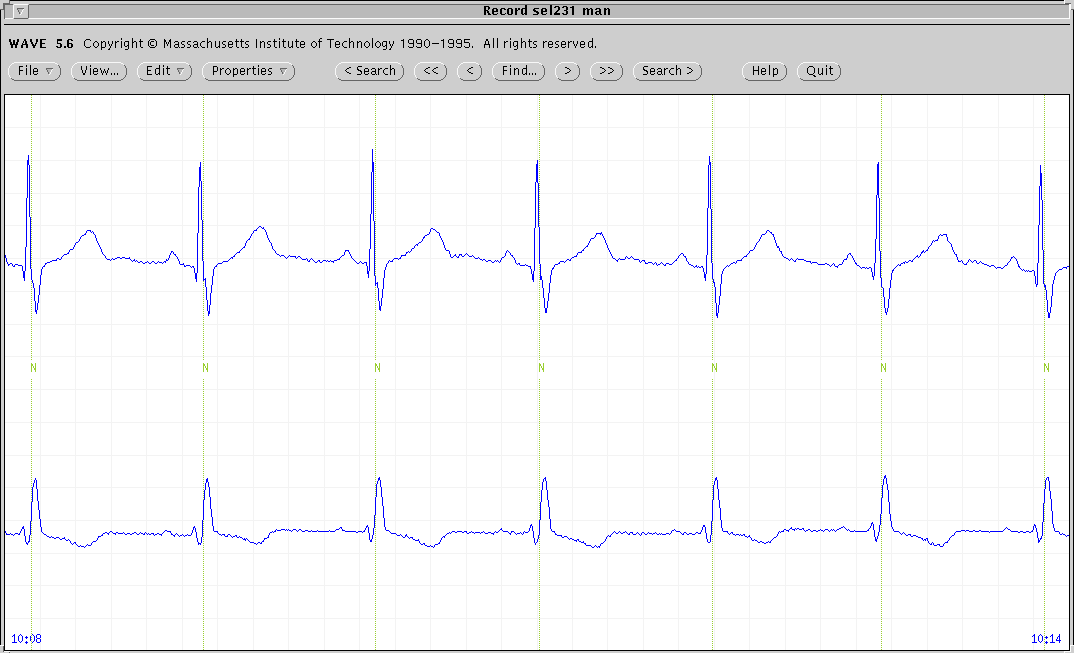

|.man||reference beat annotations for selected beats only|

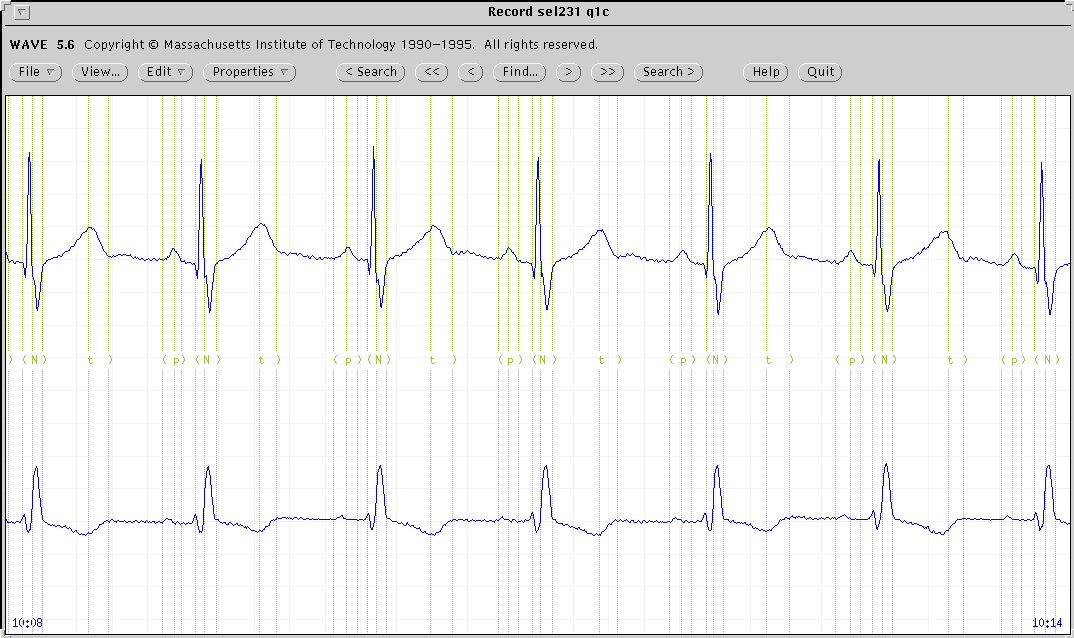

|.q1c||manually determined waveform boundary measurements for selected beats (annotator 1 only -- second pass)|
|.q2c||manually determined waveform boundary measurements for selected beats (annotator 2 only -- second pass; available for only 11 records)|
|.qt1||manually determined waveform boundary measurements for selected beats (annotator 1 only -- first pass)|
|.qt2||manually determined waveform boundary measurements for selected beats (annotator 2 only -- first pass; available for only 11 records)|
|.pu||automatically determined waveform boundary measurements for all beats (based on both signals)|
|.pu0||automatically determined waveform boundary measurements for all beats (based on signal 0 only)|
|.pu1||automatically determined waveform boundary measurements for all beats (based on signal 1 only)|
For further details about these files, see the referenced paper.
Anyone can access the files, as long as they conform to the terms of the specified license.
License (for files):
Open Data Commons Attribution License v1.0
Total uncompressed size: 82.9 MB.
Access the files
- Download the ZIP file (83.1 MB)
- Access the files using the Google Cloud Storage Browser here. Login with a Google account is required.
- Access the data using Google Cloud "gsutil":
gsutil -m cp -r gs://qtdb-1.0.0.physionet.org DESTINATION
- Download the files using your terminal:
wget -r -N -c -np https://physionet.org/files/qtdb/1.0.0/
|cinc97.shtml (download)||3.1 KB||2018-08-13|
|index.shtml (download)||3.1 KB||2018-08-13|
|node1.html (download)||2.2 KB||2000-04-03|
|node2.html (download)||2.3 KB||2000-04-03|
|node3.html (download)||6.2 KB||2000-04-03|
|node4.html (download)||48.3 KB||2000-04-03|
|node5.html (download)||3.9 KB||2000-04-03|
|node6.html (download)||2.9 KB||2000-04-03|
